Warehouse Analysis
Plasma Warehouse Project Conceptual Design
In addition to providing innovative forklift and material handling equipment solutions, Akuros also provides warehouse solutions (design/planning and equipment facilities) to optimize your operations.
You can also call 00865925537975
Warehouse analysis – plasma warehouse

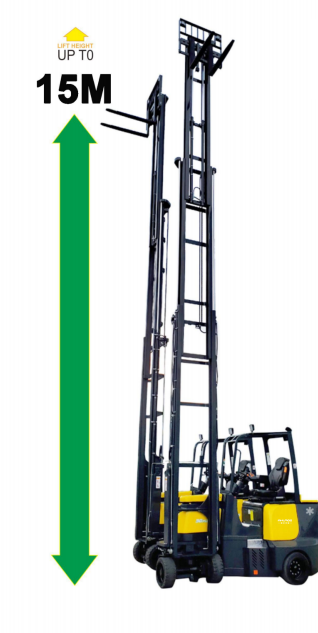

Akuros forklift model
For cold warehouse using:
1.Controller and harness heating
2.Motor heating
3.Use low temperature -40 degrees special tubing
4.Use lead-acid batteries

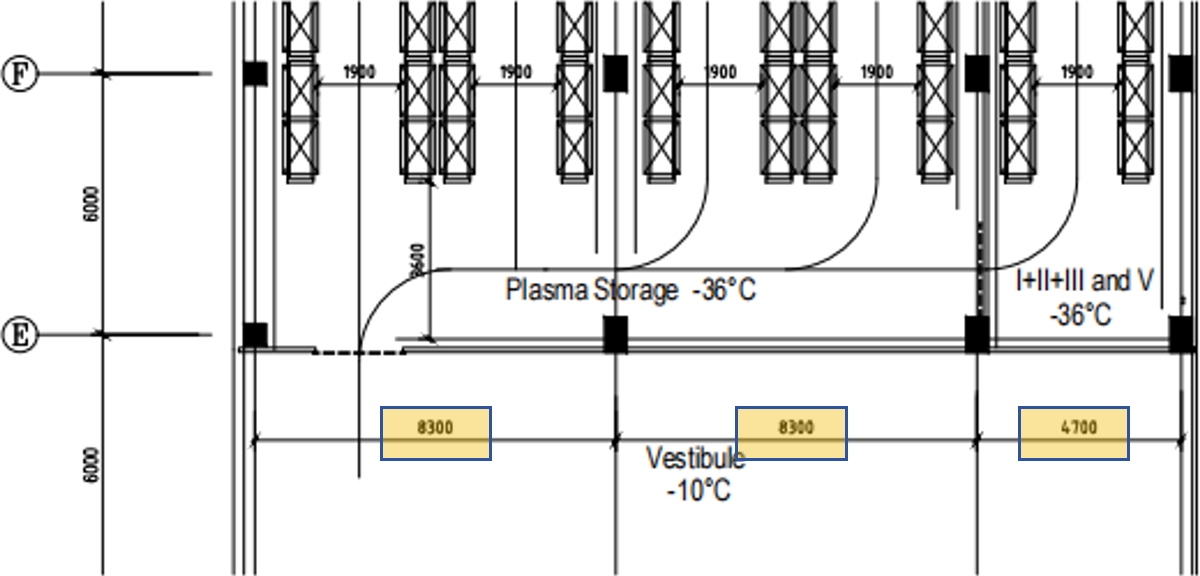

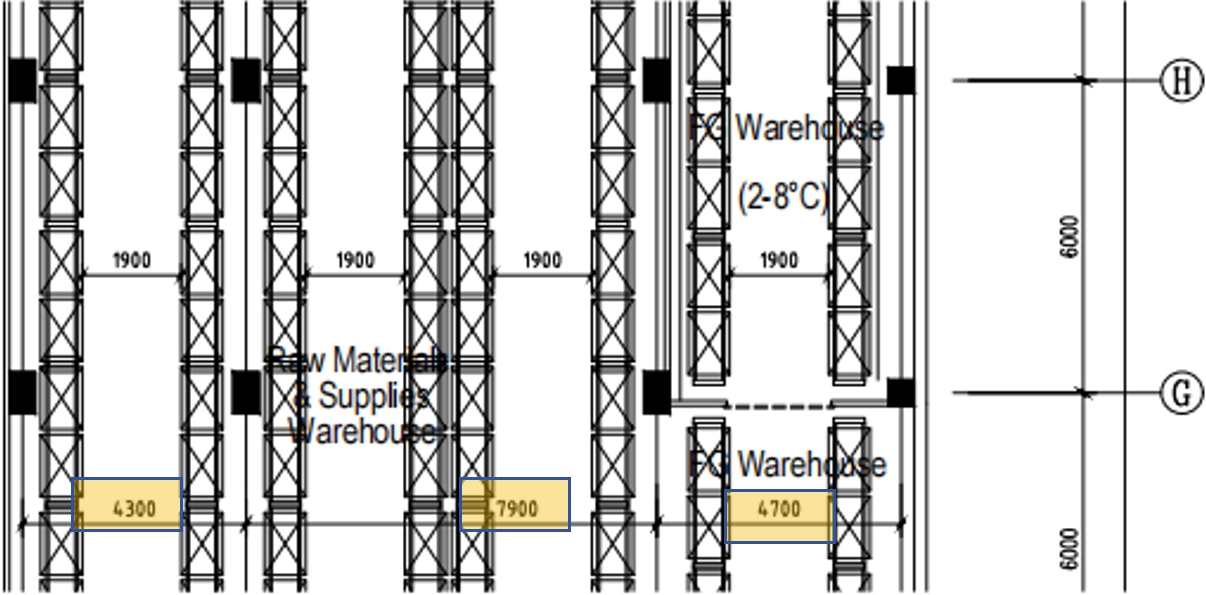

Warehouse area column distance analysis option1 (pallet carry side:1200mm)
Assume:
Column size：500x800mm;
Pallet size: 1200x800mm;
Cold storage insulation thickness: 200mm
Rack distance for VNA：1900mm
Proximity spacing：100mm
Pallet carry side: 1200mm
Warehouse size constraint:
Total warehouse size can’t exceed: 2200㎡ to ensure production area of 5400㎡
Recommendation:
Plasma warehouse dimension: 1267㎡ with column distance: 8300,8300,4700mm
FG&RM warehouse dimension of 959㎡ with column distance : 4300, 7900, 4700mm
Akuros Warehouse Column Distance Solution
Warehouse area column distance analysis option2 (pallet carry side:800mm)
Assume:
Column size：500x800mm;
Pallet size: 1200x800mm;
Cold storage insulation thickness: 200mm
Rack distance for VNA：2100mm
Proximity spacing：100mm
Pallet carry side: 800mm
Warehouse size constraint:
Total warehouse size can’t exceed: 2200㎡ to ensure production area of 5400㎡
Recommendation:
Plasma warehouse dimension: 1257㎡ with column distance: 8300,8300,4700mm
FG&RM warehouse dimension of 979㎡ with column distance : 4300, 7900, 4700mm

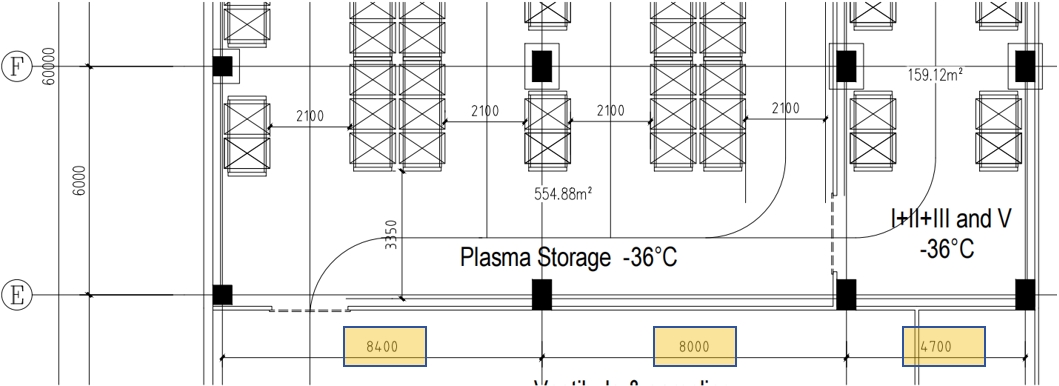

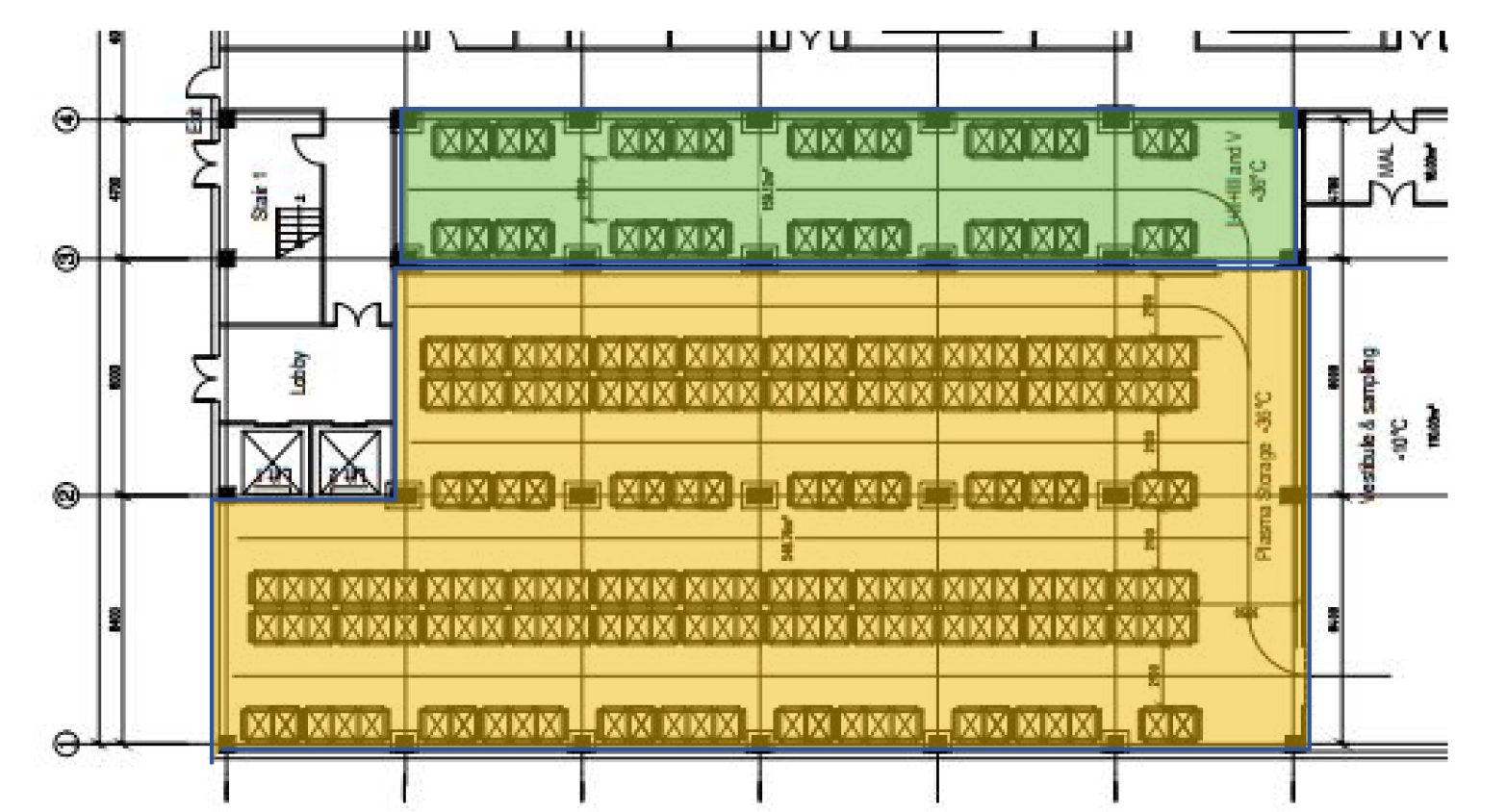

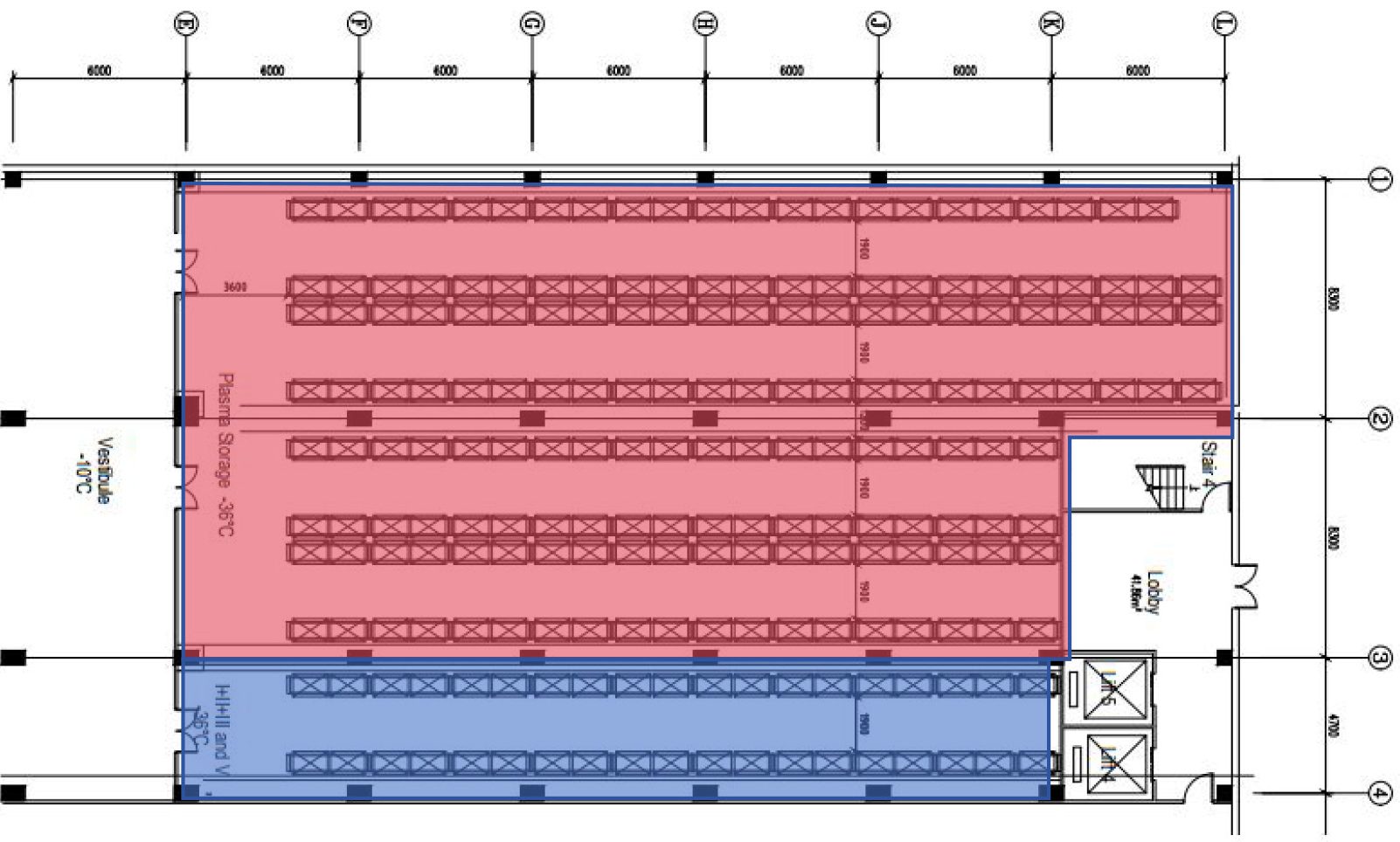

Warehouse capacity analysis – plasma warehouse
Racks height: 1.85m x 6 layers=11.1＜12.5m
plasma storage :
167pallets x 6 layers=1002 pallets
Precipitation storage:
38pallets x 6 layers=228 pallets
Precipitation storage:
36pallets x 6 layers=216 pallets
plasma storage:
165pallets x 6 layers=990 pallets
| Requirement in URS | area（sq.m) | number of pallets | storage temperature |
| plasma storage | 860 | 1500 | -36 |
| Precipitation storage (I+II+III and V) | 286 | 500 | -36 |
| warehouse in layout option1 | area（sq.m) | number of pallets | storage temperature |
| plasma storage | 554 | 1002 | -36 |
| Precipitation storage (I+II+III and V) | 159 | 228 | -36 |
| warehouse in layout option1 | area（sq.m) | number of pallets | storage temperature |
| plasma storage | 548 | 990 | -36 |
| Precipitation storage (I+II+III and V) | 160 | 216 | -36 |
Akuros Plasma Warehouse Solution

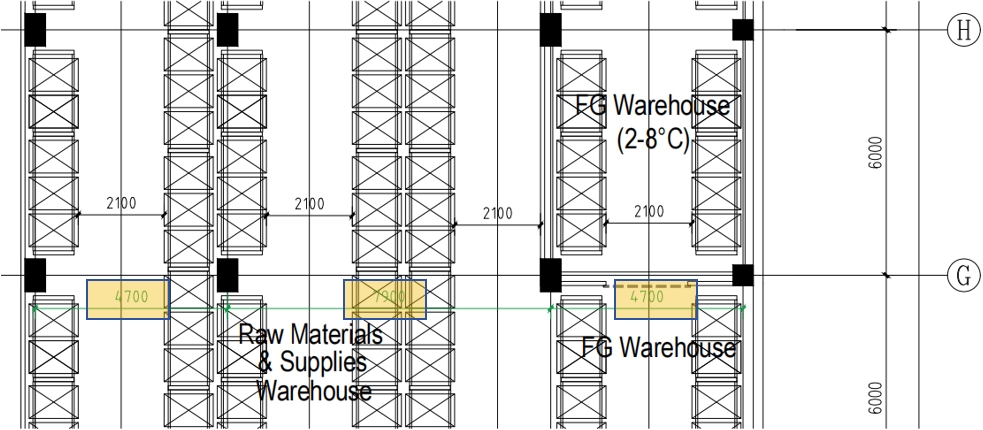

Warehouse capacity analysis – FG&RM warehouse
Racks height: 1.85m x 6 layers=11.1＜12.5m
FG warehouse(2-8℃):24pallets x 6 layers=144 pallets
FG warehouse:16pallets x 6layers=96 pallets
warehouse of raw materials and supplies:
126 pallets x 6 layers=756 pallets
FG warehouse(2-8℃):28pallets x 6 layers=168 pallets
FG warehouse:20pallets x 6layers=120 pallets
warehouse of raw materials and supplies:
135 pallets x 6 layers=810 pallets
requirement in URS | area（sq.m) | number of pallets | storage temperature |
Finished products warehouse(2-8℃) | 121 | 150 | 2-8 |
Finished products warehouse(20-25℃) | 285 | 300 | 20-25 |
warehouse of raw materials and supplies | 736 | 2000 | 20-25 |
warehouse in layout option 1 | area（sq.m) | number of pallets | storage temperature |
Finished products warehouse(2-8℃) | 90 | 144 | 2-8 |
Finished products warehouse(20-25℃) | 63 | 96 | 20-25 |
warehouse of raw materials and supplies | 364 | 756 | 20-25 |
warehouse in layout option2 | area（sq.m) | number of pallets | storage temperature |
Finished products warehouse(2-8℃) | 90 | 168 | 2-8 |
Finished products warehouse(20-25℃) | 63 | 120 | 20-25 |
warehouse of raw materials and supplies | 376 | 810 | 20-25 |
Warehouse capacity analysis
Option1 VS Option2

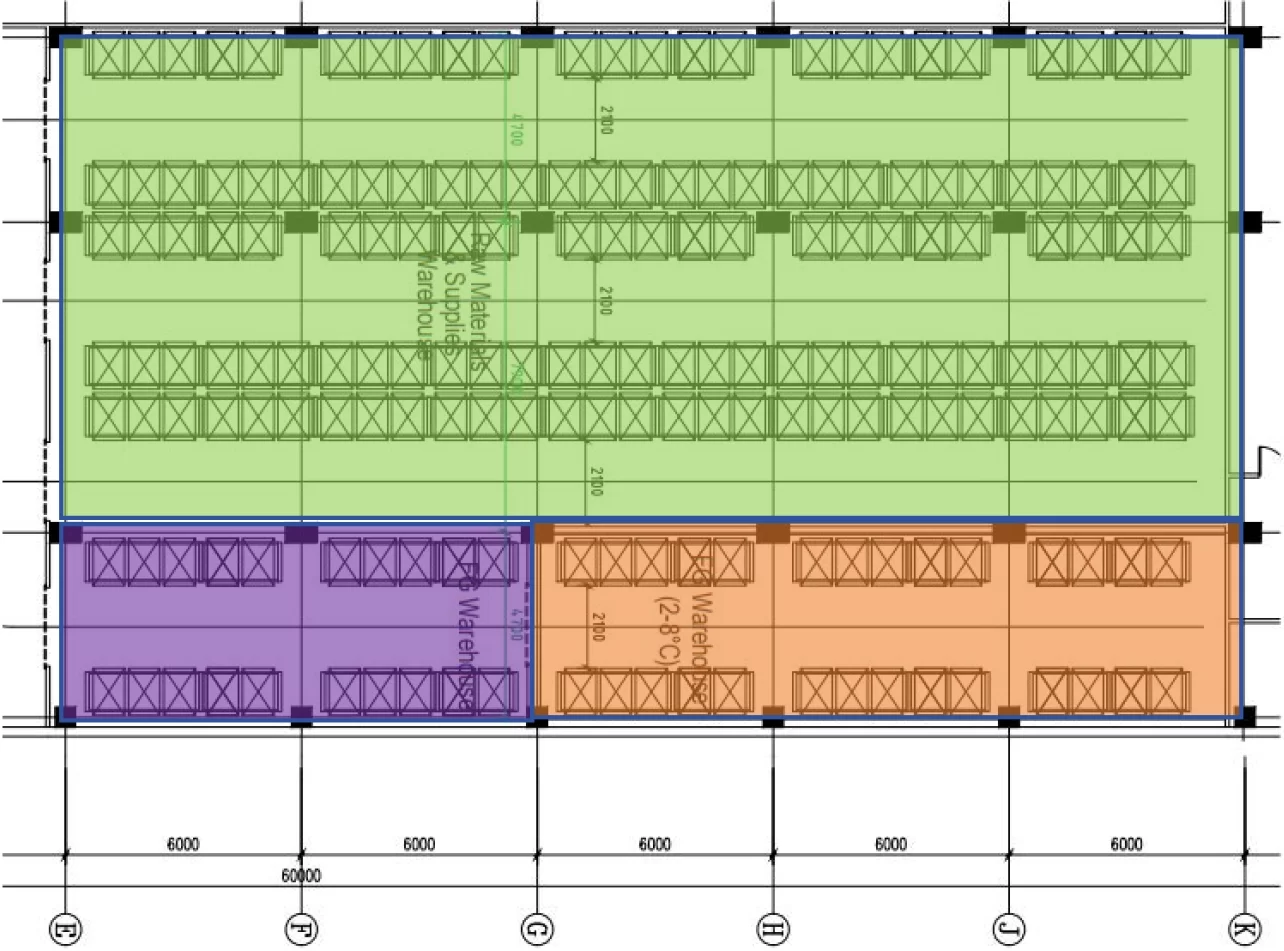

Option1 :
pallets for plasma：1002;
pallets for Precipitation：228
pallets for FG（2-8℃）：144;
pallets for FG：96
pallets for MA：756
total pallets ：2226
warehouse wide：38.2m
area for storage：1230㎡
1.80pallets/㎡

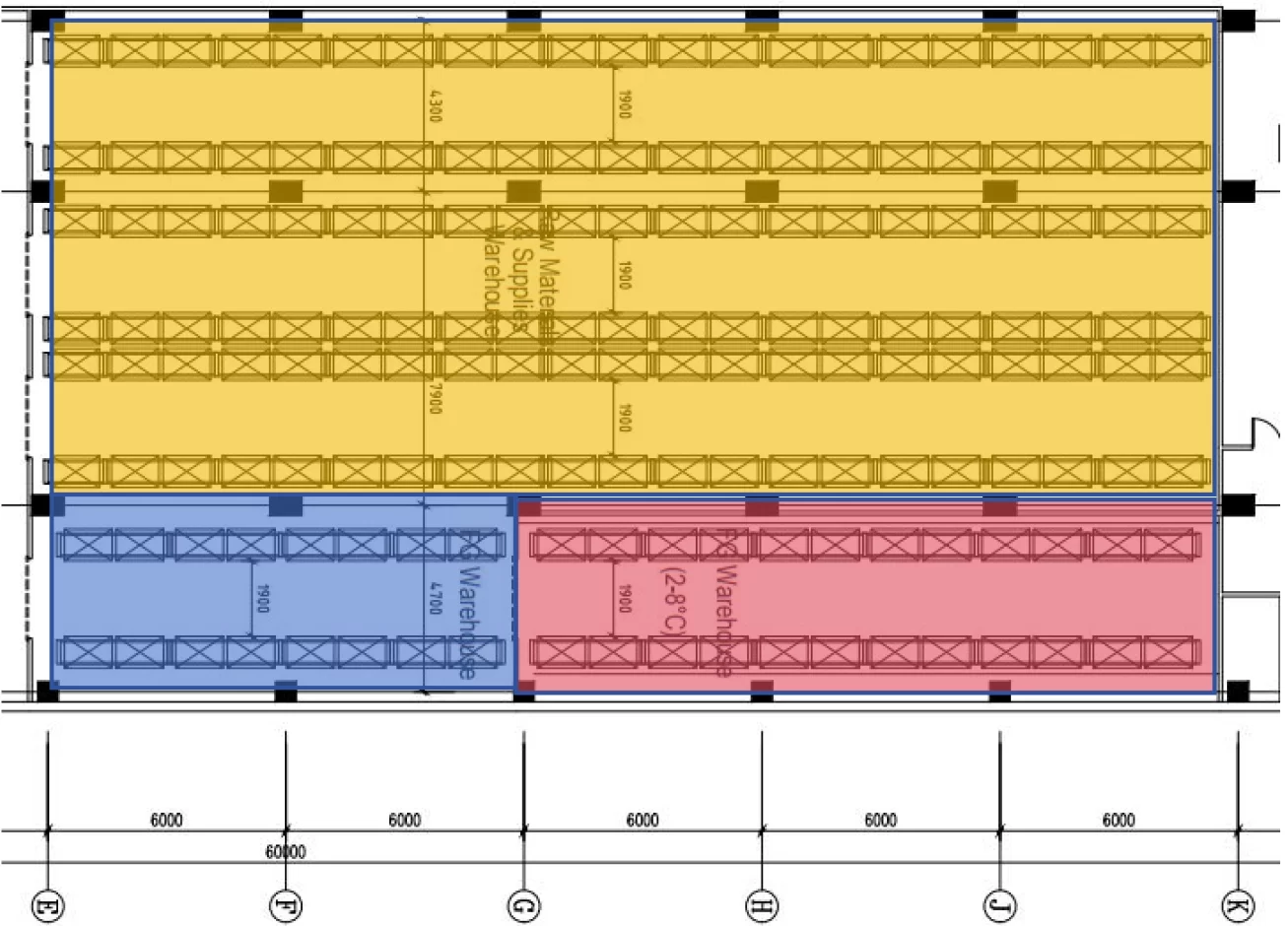

Option2 :
pallets for plasma：990;
pallets for Precipitation：216
pallets for FG（2-8℃）：168;
pallets for FG：120
pallets for MA：810
total pallets ：2304
warehouse wide：38.4m
area for storage：1237㎡
1.86pallets/㎡
